| Model No. |
WS-IP007 |

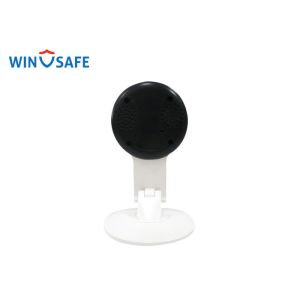

| Household IP Camera |
| Device Type |
1.0 Megapixel CMOS Sensor |
| Size |
1/4 inch |
| Day and Night |
Yes |
| Min. Scene Illumination |
0.01Lux(IR ON) |
| Infrared Sensitivity |
Support |
| Filter |
IR-CUT |
| IR-Led |
Yes |
| IR Distance |
15M |
| Lens |
| Lens |
2.8MM |
| Focus |
Fixed Lens |
| Aperture |
Fixed Aperture |
| Video |
| Compression |
H.264 |
| Picture Resolution |
Main flow: 1280*720@30fps; Minor Flow: 640*360@30fps |
| Flow Type |
Dual Stream encoding |
| Bit Rate |
128-8192kbps |
| Bit Rate Type |
CBR/VBR |
| S/N Ratio |
>50 dB |
| Image enhancement |
Auto White Balance, Backlight compensation, Brightness, Contrast, Saturation adjusted |
| Subtitles input |
Support channel name, date/time |
| Flip Config |
Up/Down, Left/Right |
| Audio/Alarm |
| Audio |
Two way audio |
| equipment |
Built-in MIC, horn |
| Audio input/output |
one channel audio input, one channel audio output |
| Audio Compression |
G.711 |
| Alarm way |
Motion Detection:Configure motion derection area, detecting sensitivity is adjustable
Cover alarm: the alarm sensitivity is adjustable |
| Alarm Processing |
The control center to monitor, Go to PTZ preset pos, Send E-mail, Log record, SD card storage etc. |
| Network |
| Protocol |
TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP,RTCP,Pelco-D |
| Safety |
IP address filtering, User level password protection, the user access log |
| Software |
| Web Browser |
Microsoft Internet Explorer 6.0 and above, google,firefox etc. |
| Software Management |
CMS and the devices Compatible with ONVIF |
| Software intelligence function |
Motion detection: Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
| Event action |
Files are stored to the back end equipment, Send E-Mail, Send SMS, Zoom in alarm, Pop ap map,Go to PTZ preset pos etc. |
| Mobile Phone |
Support Iphone, Android |
| Remote |
DDNS, Software, P2P |
| Physical Properties |
| Accessories |
Power adapter, Network cable, Stand, Operation manual, CD, Screw bag |
| Power Consumption |
DC 5V/2A |
| Temperature |
-10°~60°C |
| Humidity |
20—80% |
| Certification |
CE,FCC |
